25T Rubber Silicone Hydraulic Vulcanizing Machine 4 Column Plc Control

Brand Name : HHS

Model Number : XLB100-300

Certification : CE

Place of Origin : Qingdao Shangdong

MOQ : 1 set

Price : USD 4000-10000

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 60 sets/Year

Delivery Time : 15-30 work days

Packaging Details : standard wood package or based on clients request

Type : Vulcanizer

Colour : blue white,customized

Voltage : customized

Power(W) : 5.5KW

Temperature : 300 degree

Working Layers : 1-4layers

Plates : 300-2100mm

Hot Plates Material : Q-235 material.

Heating : electricity , steam heating , conduction oil heating .

Weight : 2000 kg

advantage : high production

Contact Now

25T Rubber Silicone Hydraulic Press Vulcanizer /Plc Vulcanizing Press/4 Column Press Machine

Product Description

Instruction:

Factory Sales Lab Rubber Compression Molding Machine is placed in the casting mold and clamped between the electric-heating flat plates to apply pressure and temperature, make the material shaping, testing and serving as the basis for the ingredient of mass production.

25T Rubber Silicone Hydraulic Vulcanizing Machine 4 Column Plc Control

Parameters:

Capacity	10T,20T,30T,50T
Temp. Range	Room temp. ~300℃
Temp. Controller	LED Indicator,press key set input
Timer	LED display,time range 0.1S~99min~9.9hr
Heating type	Electrical Heating
Hot pressure plate	300×300mm / 350x350mm / 500x500mm optional
Cold pressure plate	300×300mm / 350x350mm / 500x500mm optional
Distance of pressure plate	100mm
Pressure material	SKD chromium-molybdenum alloy
Pressure surface	Mirror chrome plated
Cooling temperature scope	Room temp. ~+5℃
Cooling type	Water cooling / Air cooling (optional)
Oil pressure system	The proportion hydraulic pressure current capacity loop circuit control system,GPY oil pump driver high performance electroencephalographic
	matching high accuracy non resistance piston of oil cylinder carry out constant speed rate control mode, can preelection one, twice pressure and time.
Oil cylinder stroke	Max 200mm
Oil cylinder speed	11mm/s
Pressure gauge	0~350kg/sq.cm
power	10.6HP
Dimension W×D×H	1000×500×1500 mm
Power supply	3 phase,AC 380V,20A (or customize)
Weight	About 500kg

25T Rubber Silicone Hydraulic Vulcanizing Machine 4 Column Plc Control

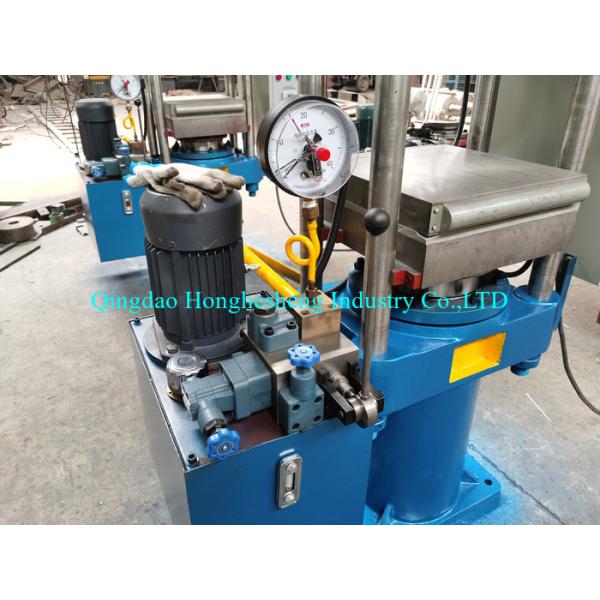

3. Picture

25T Rubber Silicone Hydraulic Vulcanizing Machine 4 Column Plc Control
